LIQUID FUEL BURNER/

HEAVY OIL BURNER

Different from solid and gas fuels, liquid fuels require atomizing for good combustion effect. Our liquid fuel burners include heavy oil burner, diesel oil burner etc. are designed with special nozzles, it has the advantages of simple structure, large adjustment ratio, wide range of oil quality, small and uniform atomizing particles, low steam consumption.

whole heavy oil combusiton system(burner, trolley, heating, valve train).png

Heavy Oil Kiln Burner-GeneralFlame:

Designation:

GF+L(Liquid fuel)+N(channel number)+RK/HF(rotary kiln/hot blast furnace)+N(MW)

Power range:

Customized 1~150MW

Combustion temperature:

600~2000℃

Burner liquid fuel

Light diesel oil	Crude oil	Shale oil	Rocket liquid fuel
Heavy oil	Residual oil	Coal liquefied oil	Rocket oxidizer
Coal tar	Gasoline	Synthetic oil	Rocket burning agent
Petroleum products	Coal oil	Alcohol fuel	Other liquid fuels

Heavy oil kiln burner brief specification

Heavy oil burner is specially designed for heavy oil with high viscosity and poor atomization performance, and it is a combustion device to improve the combustion performance of heavy oil. It is mainly composed of heavy oil tank, oil filter, supply pump, heat exchanger, heavy oil switching valve, fuel pump, pressure regulating valve, burner and its conveying pipeline.

The burner is usually divided into two types: integrated and split type. Split burner is generally used in industry area, need professional and special design and calculation to meet the requirements of all aspects, so the technical requirement is much higher than the integrated one. We focus on split burner, to provide customers with all kinds of OEM and ODM projects.

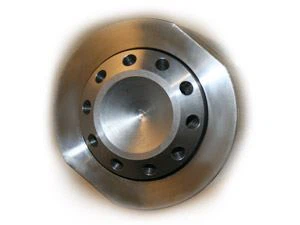

burner atomizer Valve train Burner management system

Due to the viscosity of heavy oil, it need to be preheated to above 90℃ to assure stable combustion.

Heavy oil kiln burner technical characteristics

1.Flame stabilizer is adopted to maintain stable eddy current circulation at the root of the flame and reduce the rotation of internal wind, so that the primary air volume can be reduced by half.

2.Adopt flame cover, so that the heavy oil carried in the air flow cannot diverge arbitrarily, the flame shape is reasonable to avoid high temperature at the kiln head, and extend the service life of the protecting iron at the kiln mouth.

3.Intermittently jet the external clean air directly in rectangular shape, and change to annular gap at the front end of the burner. The increased annular gap lengthens the flame and improves the average temperature in the kiln.

4.The swirl blade is installed at the front end of the inner air duct, 2cm away from the front end of the outer air cylinder wall; it plays a role in folding the flame and avoiding high temperature at the kiln head. Can adjust the first handle of the burner to stretch the flame;

5.The central wind blows the high-temperature gas around the nozzle back to the top, which not only cools the inside of the nozzle, but also cools the end face, thus protecting the burner head and extending the life of the burner.

Warranty period

18months from date of shipment indicated in B/L.
